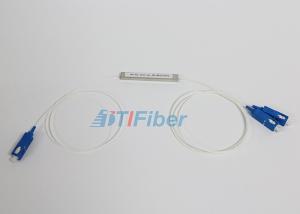

1X2 Steel Tube Type PLC Fiber Optic Cable Splitter With SC / PC Connector

Product Categories

TTI Fiber Communication Tech. Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : TTI

Model Number : 1x2 steel PLC

Certification : ROHS, SGS, ISO9001

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, , Paypal, Monthly

Supply Ability : 70000pcs/Month

Delivery Time : 3-7 work days

Packaging Details : 1pcs per box

Connector : SC

Fiber Type : G657A or customer specified

Ferrule end-face : PC, UPC, APC

Color : white or customized

Jacket : PVC, LSZH

FIber Diameter : 0.9mm

Contact Now

1X2 Steel Tube Type PLC Splitter With SC / PC Connector and 0.9mm Cable

Feature:

Application:

Specification:

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
Package	Steel Tube or ABS
