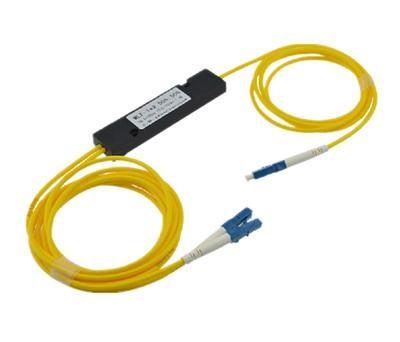

Yellow Fiber Optical Splitter Sc Apc 1x64 Loss For Communication Systerm

Brand Name : TTI

Model Number : FBT

Certification : CE / ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, , ,PAYPAL

Supply Ability : 1000 pieces / week

Delivery Time : 5-7 work days

Packaging Details : boxes

Name : fiber optical splitter

Type : SC

Connector type : APC

Loss : 1x64 loss

colour : yellow

Application : communication systerm

Material : ABS

Warranty : 3 year

Contact Now

fiber optical splitter sc apc 1x64 loss for communication systerm

FBT Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

Feature

Low Excess loss

Various Coupling Ratio

Environment stable

Single mode and multi mode available

Application

Long-haul Telecommunications

CATV Systems & Fiber Optic Sensors

Fiber Optic communication system

Local Area Network

Specification

Parameters	1×2	1×4	1×8	1×16	1×32
Operating Wavelength (nm)	1310/1490/1550
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	17/17.4
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5
Temperature Stability (-40~85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5
Operating Temperature (℃)	-40~85
Storage Temperature (℃)	-40~85
Device Dimension (mm)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4
Module Dimension (mm)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18
Mini-Module Dimension (mm)	50×7×4	50×7×4	50×7×4	60×12×4	80×20×6
