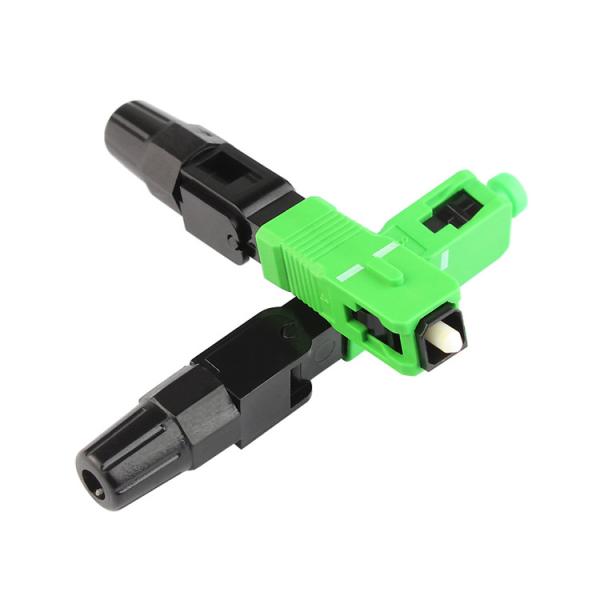

Green SC APC Fast Quick Optical Fiber Connector For Fiber Equipment

Brand Name : TTI

Model Number : SC(OM3)

Certification : CE / ROHS

Place of Origin : Shenzhen,China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, D/A, D/P, , ,Paypal

Supply Ability : 1000 pieces / week

Delivery Time : 3-5 work day

Packaging Details : Boxes

Product Name : optical fiber connector

Type : SC

Material : ABS

Application : optical fiber equipment

Color : Standred

Insertion Loss : ≤ 0.3db

insert-pull Test : 1000 times

Temperature : -40 ℃—85 ℃

Fiber : 50/125um,62.5/125um

Contact Now

SC APC fast quick optical fiber connector for fiber equipment

Fiber Optic Connectors are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration and are made to conform to IEC, Telcordia GR-326-CORE Standard. The performance of the Fiber optic connector has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others.

Features

1. Low insertion loss and back reflection loss

2. Ferrule end surface pre-domed

3. Boots in a variety colors

4. Telcordia style boots

5. Free-floating ceramic ferrule

6.The connector can be supplied as a pre-assenbled one piece or one piece or as connector kit. 7.Clips are avaliable for SC and LC duplex connector. 8.PC and APC, UPC are availiable.

9. Good exchange ability and good durability

Detailes

Parameter	Unit	FC,LC,SC				ST,MU			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
