Plastic Material Fiber Optic Cable Connectors SC UPC SM MM Type For FTTH Network

Brand Name : TTI

Model Number : SC/UPC Fiber Optic Connector

Certification : CE RoHS ISO9001

Place of Origin : China

MOQ : Negotiable

Supply Ability : 10000 pieces per week

Delivery Time : 5-8 work days

Packaging Details : Carton Box Package

Application : FTTH Network Type:

Type : SM MM

Color : Customized

Material : Plastic

Connector : SC LC ST FC

Price : Negotiable

Contact Now

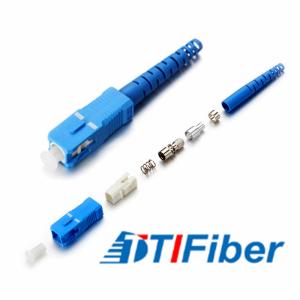

FTTH Fiber Optic Connector 0.9mm 2.0mm 3.0mm SC UPC SM MM Fiber Connectors

Descriptions:

  • Actually an optical fiber fusion
  • However welding point in inner end of connector, which makes no necessary for extra protection equipment, such as fiber protection plate (optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion
  • Compared to mechanical optical fast connector, this new practical connector can improve span life of welding point of connector and reduce maintenance cost.

Application:
•CATV
•Telecom Network
•Metro
•Multimedia
•Data processing
•Premise installation


•Gigabit Ethernet

Features :

  • Field installable, quick and convenient
  • No adhesives, crimping or polishing
  • SM compliance to GR-326-CORE
  • SM/PC and APC available
  • Compatible with most fusion splicers
Connector Type FC,SC,ST,LC,MPO,MTRJ etc
Operating Wavelength 850~1300nm, 1260-1650nm
Insertion Loss ≤0.20dB, Max 0.3dB
Return Loss PC45dB, UPC50dB,APC≥60dB
ferrule ceramic ferrule
Durability <0.1dB typical change,500 matings
Storage Temperature -40℃~+75
Operating Temperature -40℃~+75℃

Plastic Material Fiber Optic Cable Connectors SC UPC SM MM Type For FTTH NetworkPlastic Material Fiber Optic Cable Connectors SC UPC SM MM Type For FTTH Network
