GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable

Brand Name : TTI

Model Number : GYFTC8S

Certification : CE/ISO9001

Place of Origin : Shenzhen, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C,Paypal

Supply Ability : 2000m/day

Delivery Time : 3-5 working days

Packaging Details : package with wooden drum

Product name : GYFTC8S

Fiber count : 2-288 cores

Instalation : Self-surpting aerial

Temperature range : -40~+70

Application : Long distance

Package : wooden drum

Outer sheath : PE or LSZH

Core type : Singlemode

Strength member : FRP

Contact Now

Outdoor Fiber Optic Cable GYFTC8S Self-Supporting Figure 8 Loose Tube Cable

Description

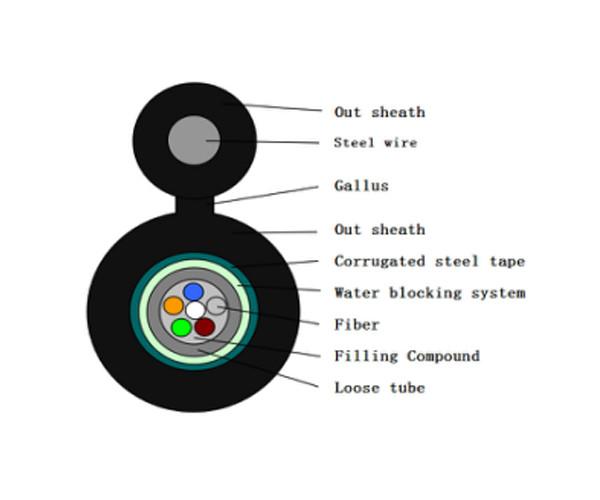

The fibers, 250μm, are positioned in a loose tube made of PBT, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Characteristics

· High tensile strength of stranded wires meet the requirement of self-supporting

· Good mechanical and temperature performance

· High strength loose tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· The following measures are taken to ensure the cable watertight:

· Loose tube filling compound

· 100% cable core filling

· steel tape moisture barrier

Specification

fiber count	configuration	filler number	out diameter	mass	minimum bend radius		tensile strength		crush resistance
	configuration		out diameter	mass	dynamic	static	short term	long term	short term	long term
	tubesxfibres		mm	kg/km	mm	mm	N	N	N/10CM	N/10CM
6	1x6	5	10.9*18.8	180	220	110	5000	2500	1000	300
12	2x6	4	10.9*18.8	180	220	110	5000	2500	1000	300
24	4x6	2	10.9*18.8	180	220	110	5000	2500	1000	300
36	6x6	0	10.9*18.8	180	220	110	5000	2500	1000	300
48	4X12	2	11.7*19.6	200	240	120	5000	2500	1000	300
60	5x12	1	11.7*19.6	200	240	120	5000	2500	1000	300
72	6x12	0	11.7*19.6	200	240	120	5000	2500	1000	300
96	8X12	0	13.1*21.0	230	270	135	5000	2500	1000	300
144	12x12	0	15.8*23.7	310	320	160	5000	2500	1000	300
192	8x24	0	14.9*22.8	280	300	150	5000	2500	1000	300
288	12x24	0	18.4*26.3	390	370	185	5000	2500	1000	300

Product pictures

GYFTC8S Fiber Optic Patch Cables , Self Supporting Figure 8 Loose Tube Cable
