UPC/APC Polish PLC Fiber Optic Splitter Customized Splice Pigtailed ABS Module

Brand Name : TTI

Model Number : PLC fiber optic splitter

Certification : CE / ISO 9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T,Paypal

Supply Ability : 2000pcs/day

Delivery Time : 3-5 working days

Packaging Details : PE bag

Product name : PLC fiber optic splitter

Package style : ABS module

Fiber type : Singlemode

Connector type : SC/ST/FC/LC

Fiber diameter : 0.9mm/2.0mm/3.0mm

Polish type : UPC/APC

Contact Now

Specifications (1XN):

Port Configration		1X2	1X4	1X8	1X16	1X32	1X64
Operating Wavelength (nm)		1260 ~ 1650
Insertion Loss (dB)	Typical	3.5	6.8	10.2	13.1	16.2	20.2
Insertion Loss (dB)	Max	4.0	7.4	10.5	13.5	16.9	21.0
Channel Uniformity (dB)		0.5	0.7	1.0	1.4	1.8	2.0
PDL (dB)		0.2	0.2	0.3	0.3	0.3	0.4
WDL (dB)		0.3	0.3	0.3	0.5	0.5	0.8
TDL (-40ºC ~ 85ºC )(dB)		0.5	0.5	0.5	0.8	0.8	1.0
Dimensions for Fan-out (mm)		60(L)X7(W)X4(H)			60X12X4	80(L)X20(W)X6(H)
RL (dB)		> 55dB
Directivity (dB)		> 55dB
Fiber Type		G652D
Operating Temperature Range		-40ºC ~ 85ºC

Singlemode PLC Fiber Optic Splitter Customized 1xN, 2xN Splice Pigtailed ABS Module

A: Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

B : Feature

• Custom and Rugged Packaging Available
• Telcordia GR-1209/1221 Qualified
• Low-Input Polarization Sensitivity
• High-Quality Connector Fan-outs

C: Application

• FTTx
• CATV Systems
• PON Networks
• Telecommunications

D: Specification

Port Configration		1X2	1X4	1X8	1X16	1X32	1X64
Operating Wavelength (nm)		1260 ~ 1650
Insertion Loss (dB)	Typical	3.5	6.8	10.2	13.1	16.2	20.2
Insertion Loss (dB)	Max	4.0	7.4	10.5	13.5	16.9	21.0
Channel Uniformity (dB)		0.5	0.7	1.0	1.4	1.8	2.0
PDL (dB)		0.2	0.2	0.3	0.3	0.3	0.4
WDL (dB)		0.3	0.3	0.3	0.5	0.5	0.8
TDL (-40ºC ~ 85ºC )(dB)		0.5	0.5	0.5	0.8	0.8	1.0
Dimensions for Fan-out (mm)		60(L)X7(W)X4(H)			60X12X4	80(L)X20(W)X6(H)
RL (dB)		> 55dB
Directivity (dB)		> 55dB
Fiber Type		G652D
Operating Temperature Range		-40ºC ~ 85ºC

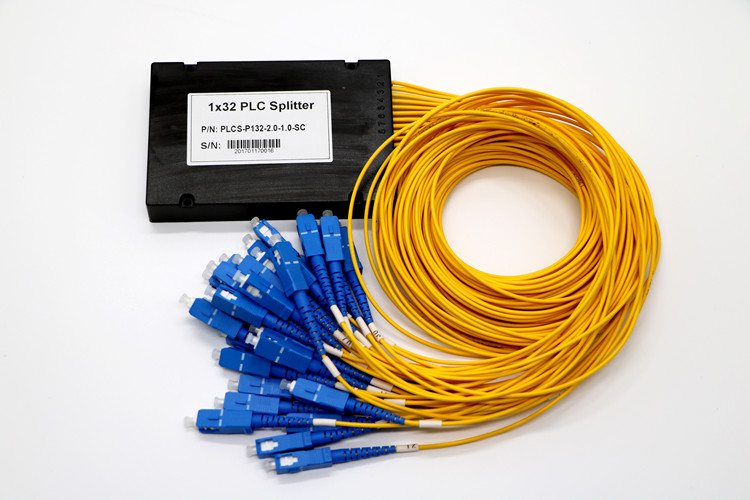

E: Product picture
