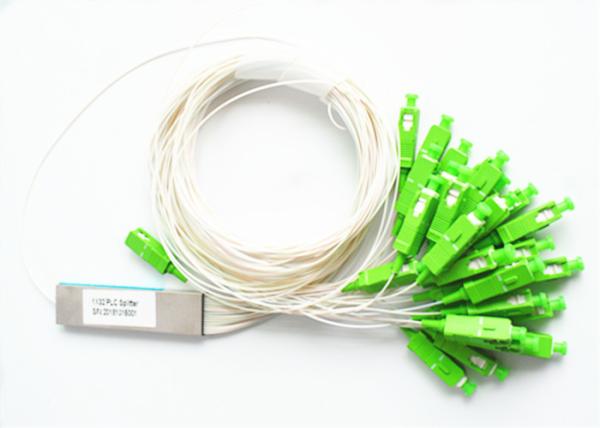

Fiber Optical Steel Tube Mini PLC Splitter SC / APC 1 x 32 Fiber Optic Splitter
Product Description
Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Optional Connectors:SC,LC,FC,with APC/UPC
Optional Fiber: G652,G657 with the OD:2.0/3.0 mm
Planar lightwave circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical wave guide technology.It features small size,high reliability,wide oprating wavelength range and good channel to channel uniformity,and is widely used in PON network to realize optical signal power splitting.Sping provides whole series of 1*N and 2*N splitter products that are tailored for sprcific applications.All products meet Telcordia 1209 and 1221 requirments and are certified by TLC for network deployment.
Features
1).Low Insertion loss
2).Low PDL
3).Compact Design
4).Good channel-to-channel uniformity
5).Wide Operating Wavelength: 1260-1650nm
6).Wide Operating Temperature: -40°C - 85°C
7).High Reliability and Stability
Adopt high strength stainless steel, pass salt spray test
Ferrule core is less than 0.5um
Adopt 100% new raw material, ROHS compliance
Low PDL Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: from 1260nm to 1650nm
Wide Operating Temperature: from -40℃ to 85℃
Applications
1).FTTX Systems
2).PON Networks
3).CATV Links
4).Optical Signal Distribution
Specifications
All-optical Structure
· Hi-reliability
· Low PDL, Low Insertion Loss
· Hi-directivity, High Return Loss
· Good stability and reliability
· Excellent polarization insensitivity
· Flexible packaging
· Operating wavelength: 1,310nm or 1,550nm, and other wavelength is available on requests
· Coupling ratio: 10/90, 20/80, 30/70, 40/60, 50/50, and customized ratios are available
· FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC fiber optic connectors are available.
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 |
| Fiber Type | G657A or customer specified |
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 |
| Storage Temperature (℃) | -40～85 |
| Package | Steel Tube or ABS |
