Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Product Categories
TTI Fiber Communication Tech. Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

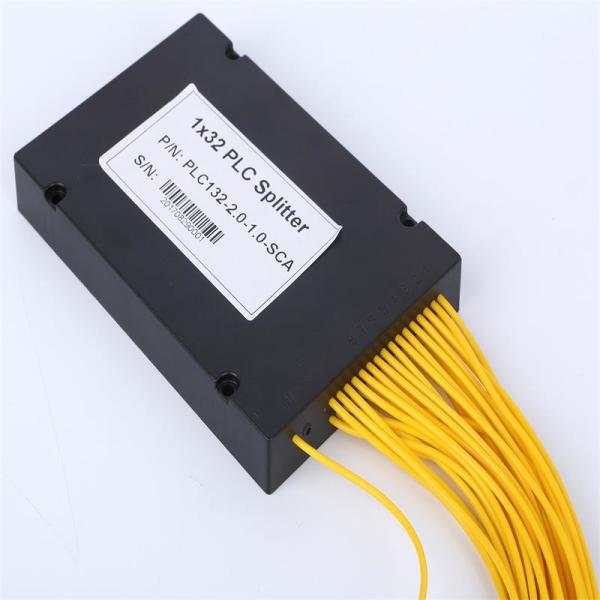

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Brand Name : TTI

Model Number : S-1

Certification : ROHS, SGS

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 70000pcs/Month

Delivery Time : 1pcs per carton

Packaging Details : 1pcs per carton

product : PLC fiber optic splitter

operating wavelength : 1260-1650

return loss : 55/50

directivity : 55

application : FTTX system

feature : excellent mechanical

Fiber type : SMF-28e or customer specified, Custom, G.657A with 0.9mm loose tube, Singlemode or multimode, G657

Operating temperature : -40℃ to 85℃, -40~+85C, -20 to75, -20~+80℃, -40 to +85 degree

Type : 1x32, 1x16, 1x4, APC, PLC Splitter

Connector type : LC, ST, FC, SC, SC/APC

Contact Now

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Quick Detail:

  1. Name: PLC splitter
  2. Type: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64
  3. Mode: Singlemode
  4. Fiber type: G652D, G657A1, G657A2
  5. Cable jacket: PVC, LSZH, OFNR, OFNP
  6. Cable length: 1M, 1.5m…customized

Pictures:

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic SplitterHot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Description:

PLC splitter is based on the Planar Waveguide Technology.
We can provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Features:

  1. Low Insertion loss
  2. Wide Operating Wavelength: From 1260nm to 1650nm
  3. Excellent Environmental & Mechanical Stability
  4. High Reliability and Stability
  5. Low PDL (Polarization Dependent Loss)
  6. Compact Design


Applications:

  1. FTTX (FTTB, FTTH, FTTC) Systems
  2. Passive Optical Network (PON)
  3. Cable Television (CATV)
  4. Optical Signal Distribution


Specification:

Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS


Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector.

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)


Our service:

  1. We could print your company name on the cable.
  2. Standard and customized OEM products from small to large quantity are welcome.
  3. Compliance with global environmental industry with RoHS and SGS standards.
  4. All products are 100% fully tested by our technical expertise.


Company Information:

  1. We build and supply PLC splitter and devices to meet the market demands.
  2. We offer custom-made products, you can order any length, any combination, tailor-made products fit for your need.
  3. We have a full set of quality control system and guarantee the high quality of our products.

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

Hot Selling 1X2 1X4 1X8 1X16 1x32 Sc/Upc PLC Fiber Optic Splitter

1.Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.

2.Do you accept OEM,ODM?
Yes, we accept them .

3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4.What's the method of shipment?
We accept all shipment, such as Delievery,ocean transport, land transport, airport transport.
